Superfine 5M Ethernet Patch Cord with ANSI/TIA Class 6 and 250 MHz Bandwidth Cat6 Cable
Szczegóły Produktu:
| Nazwa handlowa: | commscope |
| Numer modelu: | 760257422 |
| Dokument: | PC 28AWG UTP CAT6 CM CN new...ew.pdf |
|
Szczegóły informacji |
|||
| Klasa ANSI/TIA: | 6 | Typ kabla: | U/UTP (nieekranowany) |
|---|---|---|---|
| Rodzaj przewodnika: | Przewód wielożyłowy | Interfejs, złącze A: | Wtyk RJ45 |
| Złącze, złącze B: | Wtyk RJ45 | Kolor skóry: | Dostępne w kolorach: czarnym, czerwonym, pomarańczowym, szarym, żółtym, niebieskim, zielonym, białym |
| Długość: | 5m | ||
| Podkreślić: | 5M Ethernet Patch Cord,ANSI/TIA Class 6 Cat6 Cable,250 MHz Bandwidth RJ45 Cable |
||
opis produktu

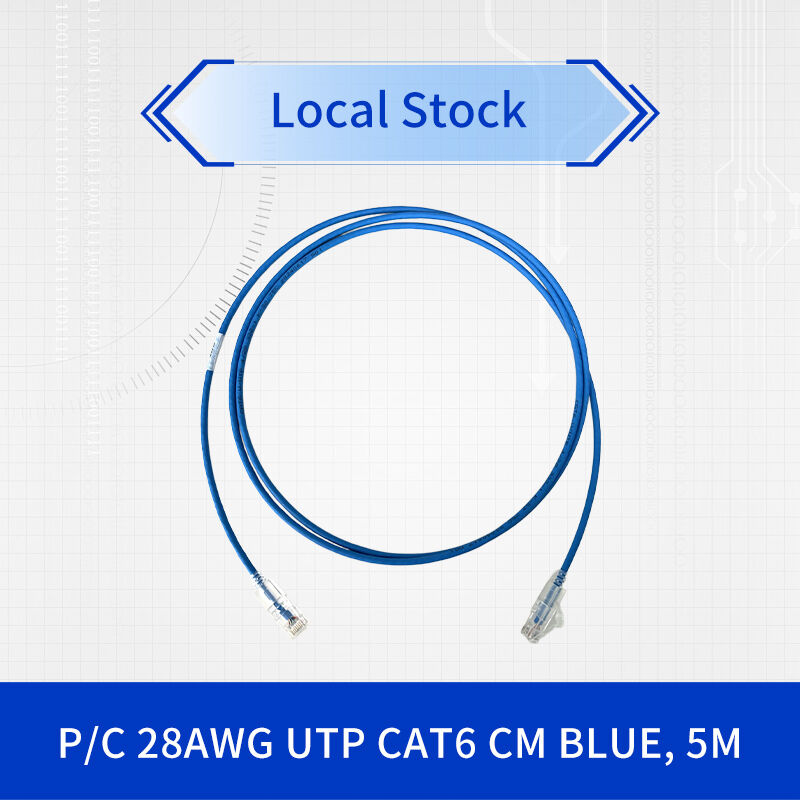

NETCONNECT 28AWG UTP CAT6 CM Superfine Ethernet Patch Cord
Product Summary
The NETCONNECT 28AWG UTP CAT6 CM represents a breakthrough in high-density networking infrastructure. This superfine Category 6 cable delivers full performance in a reduced diameter format, making it ideal for space-constrained environments where conventional cables create congestion and airflow restrictions.
Why Choose This Superfine Cat6 Cable?
Space Optimization
With a slender 4.2mm diameter, this 28AWG UTP CAT6 CM cable enables significantly higher port density in patch panels and network equipment.
Uncompromised Performance
Despite its reduced size, this ultra-thin Cat6 cable maintains full Category 6 specifications for bandwidth, insertion loss, and crosstalk.
Enhanced Airflow
The slim profile improves ventilation in enclosed cabinets, contributing to better thermal management and equipment reliability.
Technical Details
| Specification | Details |
|---|---|
| Product Line | NETCONNECT Structured Cabling |
| Cable Type | 28AWG UTP CAT6 CM Superfine Patch Cord |
| Conductor Construction | Stranded Copper, 28 American Wire Gauge |
| Shielding | U/UTP (Unshielded Twisted Pair) |
| Jacket Material | CM-Rated PVC |
| Outer Diameter | 4.2 mm (0.165 inches) |
| Connectors | RJ45 (8P8C) to RJ45 (8P8C) |
| Color Options | Black, Blue, Green, Gray, Orange, Red, White, Yellow |
| Performance Standard | ANSI/TIA-568-C.2 Category 6 |
| Bandwidth | 250 MHz |
Performance Comparison
This 28AWG UTP CAT6 CM cable maintains identical electrical performance to standard Category 6 cables while offering significant physical advantages:
| Characteristic | 28AWG CAT6 CM | Standard 24AWG CAT6 |
|---|---|---|
| Diameter | 4.2 mm | 5.8-6.2 mm |
| Weight per meter | Approx. 18g | Approx. 28g |
| Bend Radius | 20 mm | 29 mm |
| Cables per 1U Space | Up to 48 | Up to 36 |
Recommended Applications
- High-Density Data Centers: Maximize port utilization in top-of-rack and leaf-spine architectures
- Telecommunications Rooms: Efficiently manage connections in space-constrained IDF/MDF installations
- Office Environments: Streamline cable management in modern open-plan workspaces
- Digital Signage Networks: Deliver reliable connectivity for distributed display systems
- Educational Institutions: Support technology-rich learning environments with organized infrastructure
Compliance & Certifications
This UTP CAT6 CM cable complies with industry standards and environmental regulations:
- ANSI/TIA-568-C.2 Category 6
- ISO/IEC 11801 Class E
- UL CM (Commercial) Rating
- RoHS Compliant
- REACH SVHC Compliance
Frequently Asked Questions
What is the maximum distance for this 28AWG Cat6 cable?
This superfine Cat6 patch cord supports the standard 100-meter channel length for Category 6 applications when installed according to manufacturer specifications.
Can this cable be used for Power over Ethernet applications?
Yes, this 28AWG UTP CAT6 CM cable supports PoE, PoE+, and 4PPoE applications within the current carrying capacity limits of 28AWG conductors.
How does the CM rating differ from other jacket ratings?
The CM (Commercial) rating indicates suitability for general purpose use in commercial buildings, with appropriate fire resistance characteristics for most office and data center environments.
Installation Notes
- Maintain minimum bend radius of 4 times cable diameter during installation
- Use appropriate strain relief techniques to prevent connector damage
- Avoid excessive tension when pulling cables through conduits or pathways
- Implement proper cable management to maintain organization and accessibility
- Test installed cables to verify Category 6 performance specifications are met
